GENERAL SPECIFICATIONS

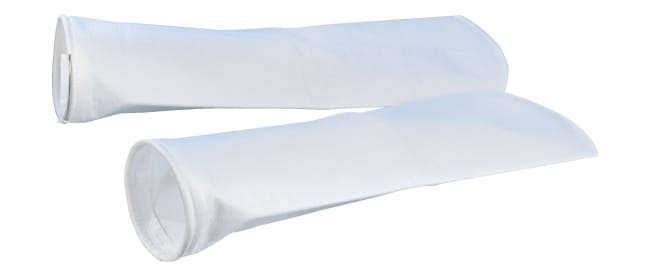

PRODUCT NAME: Eaton SNAP-RING Filter Bag
PRODUCT LENGTH/DEPTH: 810 mm
PRODUCT WEIGHT: 0.21 kg
CERTIFICATIONS: Kosher | Halal | ISO 9001
PRODUCT SPECIFICATIONS
FILTER BAG SIZE: Size 02: Dia 180 x L 810 mm
CAPACITY TYPE: Standard
FILTER MATERIAL TYPE: Polypropylene
DIFFERENTIAL PRESSURE - MAX: 2.5 bar
CONSTRUCTION TYPE: Sewn
COVER LAYER MATERIAL: Plain
RING TYPE: Zinc-plated steel snap-ring
FILTER AREA: 0.48 m²
FLOW RATE - MAX: 40 m³/h
RETENTION TYPE: Nominal
RETENTION RATING: 100 µm
OPERATING TEMPERATURE - MAX: 110 °C
PACKAGING: 1 bag (1 box = 40 bags)
FILTER MEDIA TYPE: Needlefelt
